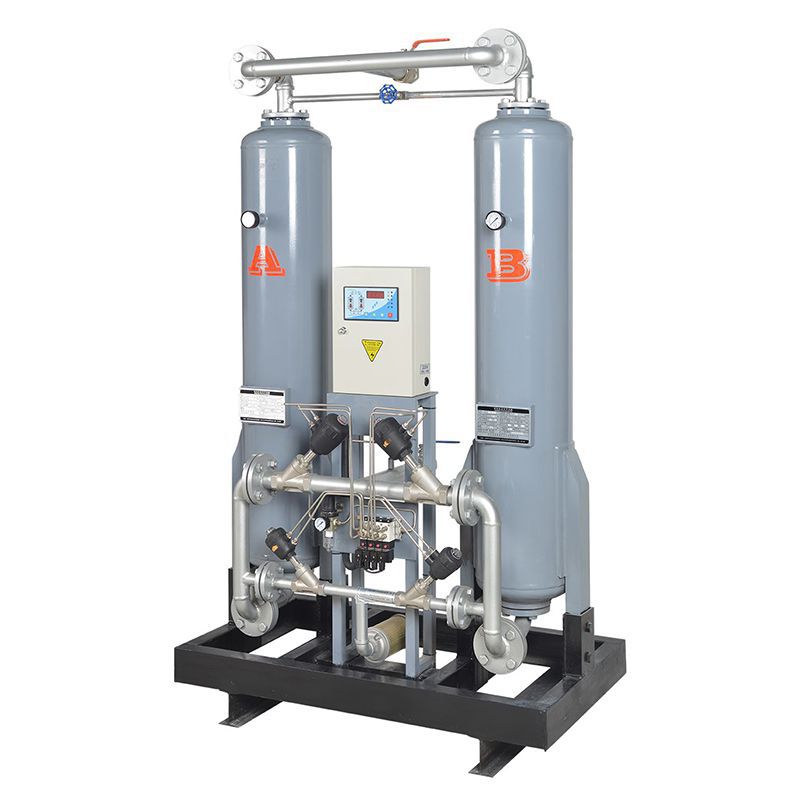

Desiccant Air Dryer

  • Air Flow (Nm³/min): 1.5~110.0
  • N.W. (kg): 92~3000

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

For those seeking a robust solution for moisture removal in compressed air systems, our desiccant air dryer has got you covered!
  • Desiccant Air Dryer
    HA-015XF
    Desiccant Air Dryer (1.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    1.5 G1" DN25 580*670*1695
  • Desiccant Air Dryer
    HA-020XF
    Desiccant Air Dryer (2.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    2.5 G1" DN25 630*730*1805
  • Desiccant Air Dryer
    HA-026XF
    Desiccant Air Dryer (2.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    2.5 G1" DN25 630*730*1805
  • Desiccant Air Dryer
    HA-038XF
    Desiccant Air Dryer (3.8Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    3.8 G1½" DN40 570*840*1690
  • Desiccant Air Dryer
    HA-070XF
    Desiccant Air Dryer (6.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    6.5 G1½" DN40 610*1020*1710
  • Desiccant Air Dryer
    HA-110XF
    Desiccant Air Dryer (10.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    10.5 G2" DN50 680*1160*1900
  • Desiccant Air Dryer
    HA-150XF
    Desiccant Air Dryer (13.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    13.5 G2" DN50 680*1160*2200
  • Desiccant Air Dryer
    HA-180XF
    Desiccant Air Dryer (17Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    17 DN65 DN65 720*1195*2175
  • Desiccant Air Dryer
    HA-220XF
    Desiccant Air Dryer (21.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    21.5 DN80 DN80 980*1280*2310
  • Desiccant Air Dryer
    HA-280XF
    Desiccant Air Dryer (28.5Nm³/min)
    Delivery Air Flow (Nm³/min) Inlet/Outlet Diameter (inch/mm) Dimensions Length*Width*Height
    (mm)
    NB DN
    28.5 DN80 DN80 1060*1460*2320
Model HA-015XF HA-020XF HA-026XF HA-038XF HA-070XF HA-110XF HA-150XF HA-180XF HA-220XF HA-280XF
Delivery Air Flow (Nm³/min) 1.5 2.5 2.5 3.8 6.5 10.5 13.5 17.0 21.5 28.5
N.W. (kg) 92 120 120 175 310 430 522 580 720 1000
Inlet/Outlet Diameter (inch/mm) NB G1" G1" G1" G1½" G1½" G2" G2" DN65 DN80 DN80
DN DN25 DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN80 DN80
Desiccant (kg) 24 37 37 60 92 430 185 225 300 445
Dimensions （mm） Length (mm) 580 630 630 570 610 680 680 720 980 1060
Width (mm) 670 730 730 840 1020 1160 1160 1195 1280 1460
Height (mm) 1695 1805 1805 1690 1710 1900 2200 2175 2310 2320
Model HA-320XF HA-380XF HA-460XF HA-550XF HA-670XF HA-750XF HA-850XF HA-950XF HA-1100XF
Delivery Air Flow (Nm³/min) 32.0 37.0 45.0 55.0 65.0 75.0 85.0 95.0 110.0
N.W. (kg) 1100 1180 1420 1670 2000 2320 2550 2850 3000
Inlet/Outlet Diameter
(mm) 		NB DN80 DN100 DN100 DN100 DN125 DN125 DN125 DN150 DN150
DN DN80 DN100 DN100 DN100 DN125 DN125 DN125 DN150 DN150
Desiccant (kg) 500 580 695 880 1040 1200 1210 1700 2200
Dimensions （mm） Length (mm) 1060 1080 1160 1150 1240 1240 1350 1430 1430
Width (mm) 1460 1580 1765 1825 2040 2136 2210 2330 2450
Height (mm) 2510 2460 2550 2690 2820 2930 2970 3250 2980

Notes:
1. Working pressure: 0.5-1.0Mpa
2. Dew point temperature: -40℃
3. Inlet temperature: ≤45℃
4. Working method: twin towers work in turn continuously

Download PDF
Features
  • We use high-efficiency adsorbents, which ensure strong moisture adsorption, long-term use, and stable dew points.
  • Our desiccant air dryer features high-performance pneumatic valves, which are reliable, quick-acting, and long-lasting.
  • Using the silent unidirectional valves and high-performance mufflers, the dryer operates quietly.
  • Our dryer comes with a fully programmable electronic controller with an intuitive interface that is easy to use and maintain.
  • We offer customizable desiccant air dryers in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
