Smart Single Stage Permanent Magnet VSD Screw Compressor
Inquiry

Smart Single Stage Permanent Magnet VSD Screw Compressor

  • Air Displacement (m³/min): 0.86～7.2
  • Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
  • Power (kW): 7.5~45 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Smart Single Stage Permanent Magnet VSD Screw Compressor

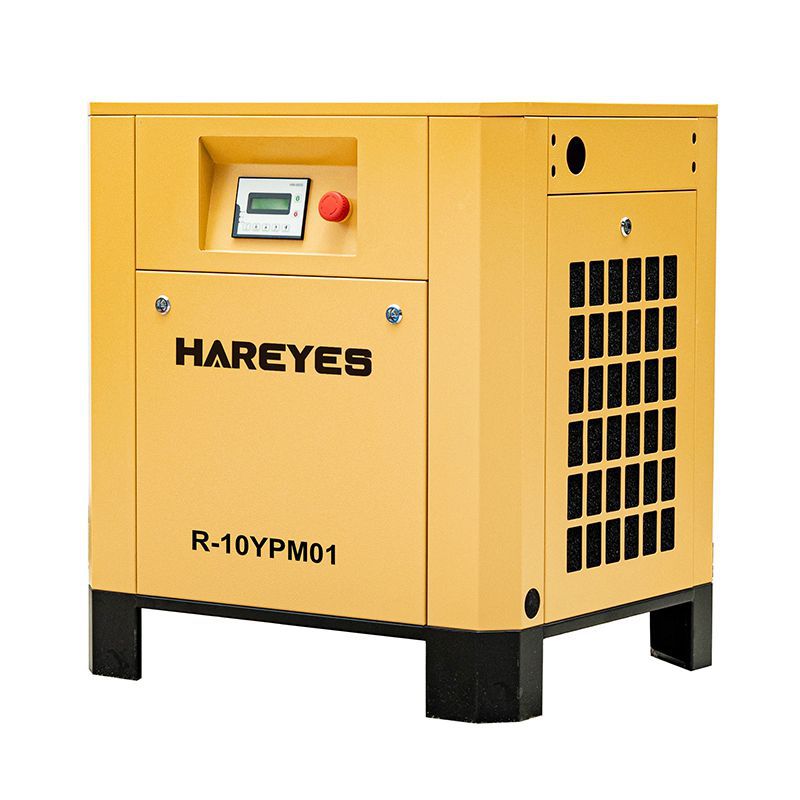

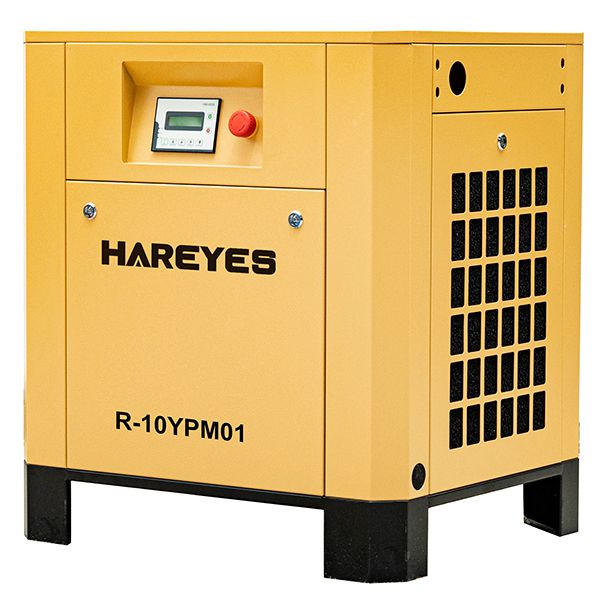

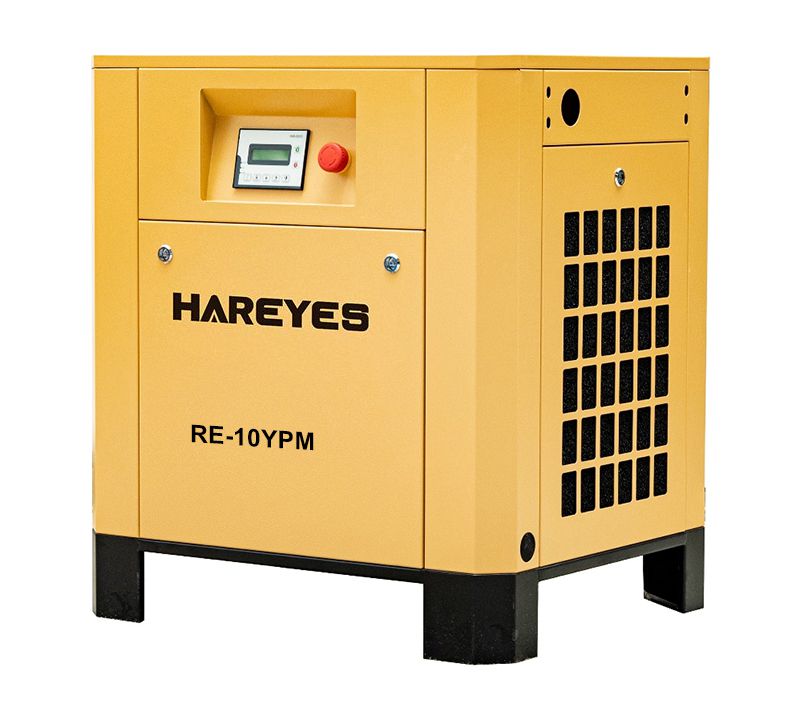

    R-10YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 7.5kW/10HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.08/0.7/7 0.98/0.8/8 0.86/1.0/10 38/102 35/116 30/145 7.5/10 720*600*800
  • Smart Single Stage Permanent Magnet VSD Screw Compressor
    R-15YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 11kW/15HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.65/0.7/7 1.58/0.8/8 1.40/1.0/10 58/102 56/116 50/145 11/15 940*680*950
  • Smart Single Stage Permanent Magnet VSD Screw Compressor

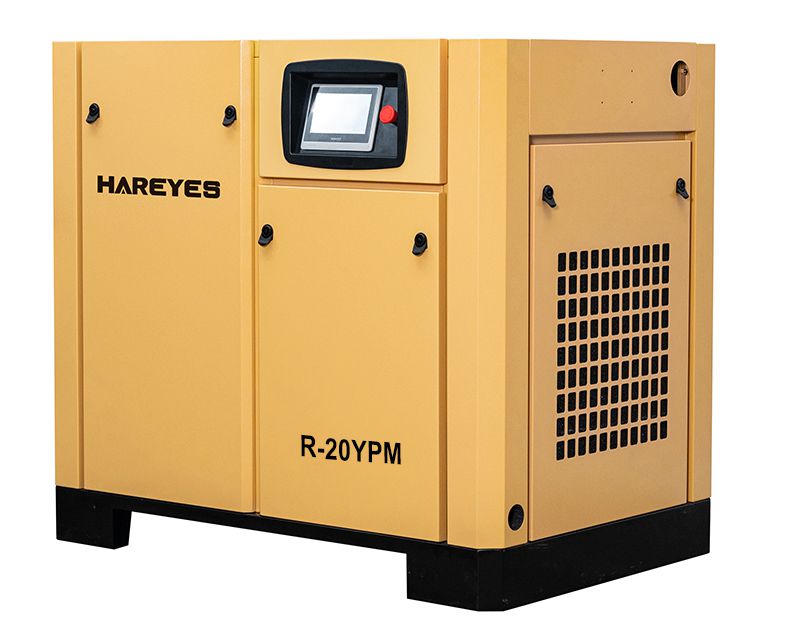

    R-20YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 15kW/20HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    2.3/0.7/7 2.1/0.8/8 1.9/1.0/10 81/102 74/116 67/145 15/20 940*680*950
  • Smart Single Stage Permanent Magnet VSD Screw Compressor
    R-30YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    3.6/0.7/7.0 3.4/0.8/8.0 3.1/1.0/10 127/102 120/116 109/145 22/30 1110*830*1120
  • Smart Single Stage Permanent Magnet VSD Screw Compressor
    R-40YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 30kW/40HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    5.1/0.7/7 5.0/0.8/8 4.7/1.0/10 180/102 177/116 166/145 30/40 1340*950*1200
  • Smart Single Stage Permanent Magnet VSD Screw Compressor
    R-50YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    6.2/0.7/7.0 6.0/0.8/8.0 5.7/1.0/10 219/102 212/116 201/145 37/50 1340*950*1220
  • Smart Single Stage Permanent Magnet VSD Screw Compressor
    R-60YPM
    Smart Single Stage Permanent Magnet VSD Screw Compressor 45kW/60HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    7.2/0.7/7 7.0/0.8/8 6.4/1.0/10 254/102 247/116 226/145 45/60 1340*950*1220
Model R-10YPM R-15YPM R-20YPM R-30YPM R-40YPM R-50YPM R-60YPM
Air Displacement @ Pressure
(M³/min @ MPa/Bar) 		1.08/0.7/7 1.65/0.7/7 2.3/0.7/7 3.6/0.7/7.0 5.1/0.7/7 6.2/0.7/7.0 7.2/0.7/7
0.98/0.8/8 1.58/0.8/8 2.1/0.8/8 3.4/0.8/8.0 5.0/0.8/8 6.0/0.8/8.0 7.0/0.8/8
0.86/1.0/10 1.40/1.0/10 1.9/1.0/10 3.1/1.0/10 4.7/1.0/10 5.7/1.0/10 6.4/1.0/10
Air Displacement @ Pressure
(CFM @ PSI) 		38/102 58/102 81/102 127/102 180/102 219/102 254/102
35/116 56/116 74/116 120/116 177/116 212/116 247/116
30/145 50/145 67/145 109/145 166/145 201/145 226/145
Volume of Lubricant (L) 5 10 10 12 22 22 23
Noise Level dB(A) 68±2 70±2 74±2
Compression Stage Single stage
Drive method Direct drive
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Power
( kW/HP) 		7.5/10 11/15 15/20 22/30 30/40 37/50 45/60
Motor Protection Class IP23
Starting Mode Variable frequency starting
Dimensions Length (mm) 720 940 940 1110 1340 1340 1340
Width (mm) 600 680 680 830 950 950 950
Height (mm) 800 950 950 1120 1200 1220 1220
N.W. kg 105 195 195 290 396 415 480
Outlet Diameter (inch) G3/4" G1" G1-1/2"

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF
Features

  • High-Performance Main Unit

    This compressor is equipped with a high-performance main unit, ensuring a high-volume delivery of air and reliable operation.

  • Efficient Permanent Magnet Motor

    This compressor features an efficient permanent magnet motor that reduces energy consumption.

  • Compact and Elegant Design

    With a compact and elegantly designed layout, this air compressor not only saves space but also reduces costs. It utilizes high-quality components for efficiency, stability, and durability.

  • Microcomputer Intelligent Control

    The microcomputer intelligent control system enables fully automated operation and offers emergency stop alarm.

  • Market-Ready Models

    Our air compressor caters to market demands with a range of best-selling models from 5.5KW to 45KW.

  • Cost-Effective Solution

    With evident cost advantages in bulk production, our air compressor stands as a cost-effective choice on the market. It comes with complete certifications, ensuring smooth domestic and international sales.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
Related Air Treatment Equipment
Smart VSD, Two Stage Smart VSD, Two Stage

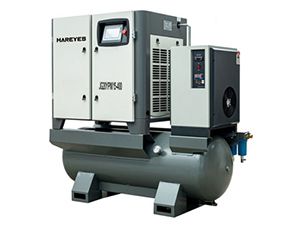

lntegrated with Dryer & Tank lntegrated with Dryer & Tank
