Single Stage Permanent Magnet VSD Screw Compressor
Inquiry

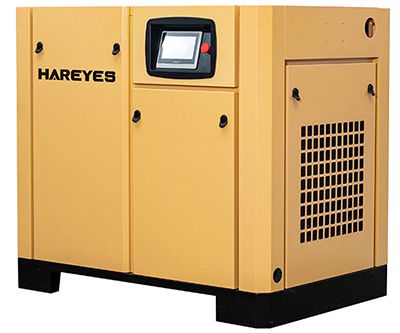

Single Stage Permanent Magnet VSD Screw Compressor, RE Series

  • Air Displacement (m³/min): 0.86～44.0
  • Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
  • Power (kW): 7.5~250 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

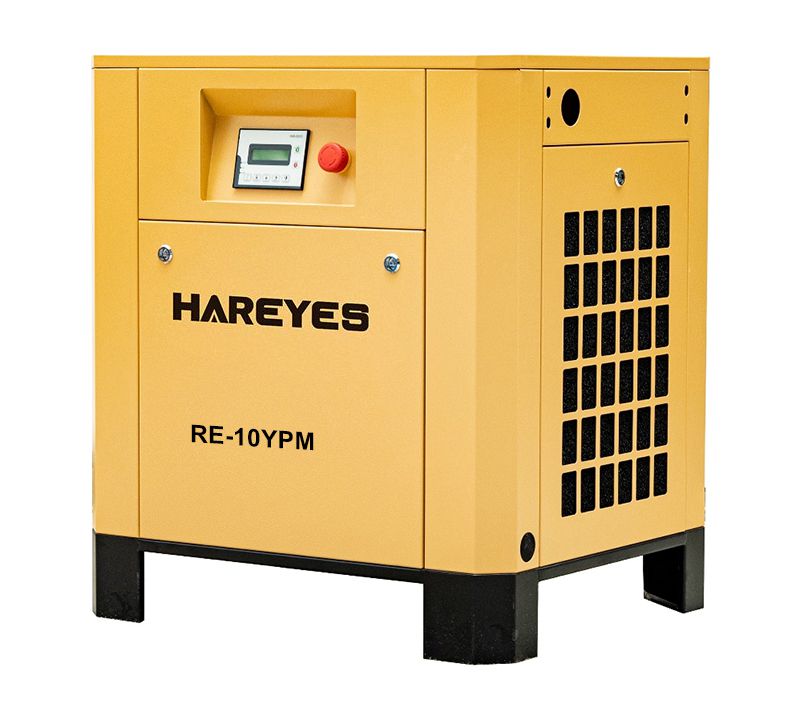

  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-10YPM
    Single Stage Permanent Magnet VSD Screw Compressor 7.5kW/10HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.08/0.7/7 0.98/0.8/8 0.86/1.0/10 38.1/102 34.60/116 30.4/145 7.5/10 900*660*900
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-15YPM
    Single Stage Permanent Magnet VSD Screw Compressor 11kW/15HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.65/0.7/7 1.58/0.8/8 1.40/1.0/10 58.26/102 55.79/116 49.44/145 11/15 1120*760*1020

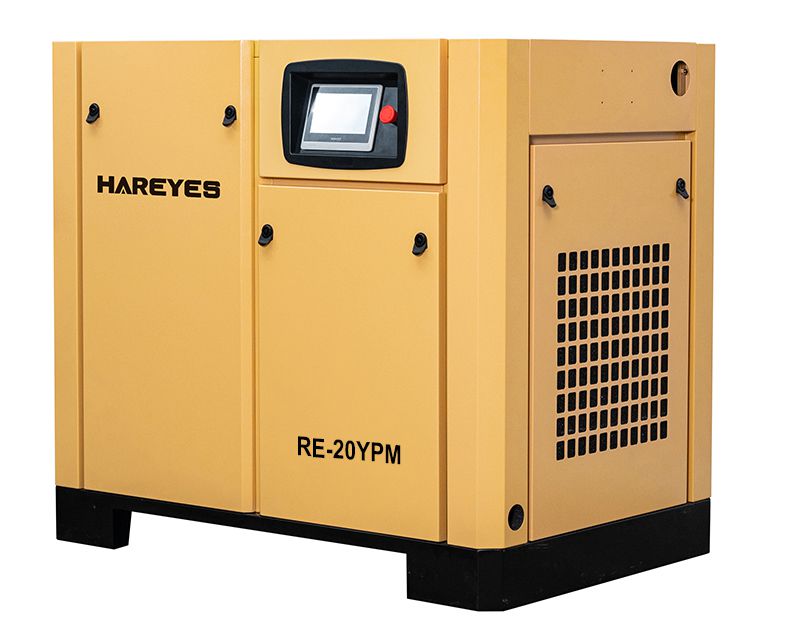

  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-20YPM
    Single Stage Permanent Magnet VSD Screw Compressor 15kW/20HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    2.3/0.7/7 2.1/0.8/8 1.9/1.0/10 81.22/102 74.16/116 67.09/145 15/20 1120*760*1020

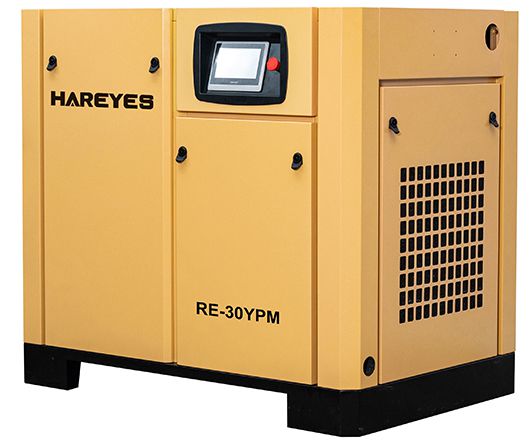

  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-30YPM
    Single Stage Permanent Magnet VSD Screw Compressor 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    3.6/0.7/7 3.4/0.8/8 3.1/1.0/10 127.13/102 120/116 109.5/145 22/30 1340*880*1180
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-40YPM
    Single Stage Permanent Magnet VSD Screw Compressor 30kW/40HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    5.1/0.7/7 5.0/0.8/8 4.7/1.0/10 180/102 176/116 166/145 30/40 1500*980*1300

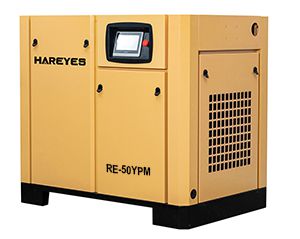

  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-50YPM
    Single Stage Permanent Magnet VSD Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    6.2/0.7/7 6.0/0.8/8 5.7/1.0/10 219/102 212/116 201/145 37/50 1500*980*1300
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-60YPM
    Single Stage Permanent Magnet VSD Screw Compressor 45kW/60HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    7.2/0.7/7 7.0/0.8/8 6.4/1.0/10 254/102 247/116 226/145 45/60 1500*980*1300
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-75PM
    Single Stage Permanent Magnet VSD Screw Compressor 55kW/75HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    9.35/0.7/7 9.2/0.8/8 8.8/1.0/10 330/102 325/116 311/145 55/75 1800*1250*1570
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-100PM
    Single Stage Permanent Magnet VSD Screw Compressor 750kW/100HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    12.4/0.7/7 12.1/0.8/8 11.4/1.0/10 438/102 428/116 403/145 75/100 1800*1250*1570
  • Single Stage Permanent Magnet VSD Screw Compressor
    RE-125PM
    Single Stage Permanent Magnet VSD Screw Compressor 90kW/125HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)    		 Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    15.5/0.7/7 15.0/0.8/8 14.2/1.0/10 548/102 530/116 502/145 90/125 1800*1250*1570
Model RE-10YPM RE-15YPM RE-20YPM RE-30YPM RE-40YPM RE-50YPM RE-60YPM RE-75PM RE-100PM RE-125PM RE-150PM RE-175PM RE-200PM RE-250PM RE-300PM RE-350PM
Air Displacement @ Pressure (M³/min @ MPa/Bar) 1.08/0.7/7 1.65/0.7/7 2.3/0.7/7 3.7/0.7/7 5.1/0.7/7 6.3/0.7/7 7.2/0.7/7 9.35/0.7/7 12.4/0.7/7 15.5/0.7/7 19.3/0.7/7 22.2/0.7/7 28.0/0.7/7 32.0/0.7/7 41.3/0.7/7 44.0/0.7/7
1.0/0.8/8 1.58/0.8/8 2.1/0.8/8 3.6/0.8/8 5.0/0.8/8 6.1/0.8/8 7.0/0.8/8 9.2/0.8/8 12.1/0.8/8 15.0/0.8/8 18.8/0.8/8 21.8/0.8/8 27.2/0.8/8 29.4/0.8/8 40.1/0.8/8 43.1/0.8/8
0.86/1.0/10 1.40/1.0/10 1.9/1.0/10 3.3/1.0/10 4.7/1.0/10 5.7/1.0/10 6.4/1.0/10 8.8/1.0/10 11.4/1.0/10 14.2/1.0/10 17.8/1.0/10 18.9/1.0/10 24.8/1.0/10 26.8/1.0/10 34.6/1.0/10 37.5/1.0/10
Air Displacement @ Pressure
(CFM @ PSI)		 38.1/102 58/102 81/102 131/102 180/102 223/102 254/102 330/102 438/102 548/102 682/102 784/102 989/102 1130/102 1459/102 1555/102
35.3/116 56/116 74/116 127/116 178/116 216/116 247/116 325/116 428/116 530/116 664/116 770/116 961/116 1038/116 1417/116 1523/116
30.4/145 50/145 67/145 117/145 166/145 201/145 226/145 311/145 403/145 502/145 629/145 668/145 876/145 947/145 1222/145 1325/145
Volume of Lubricant (L) 5 10 10 12 22 22 22 54 54 54 72 90 90 125 180 180
Compression Stage Single stage
Noise Level dB(A) 68±2 70±2 74±2 77±2 80±2
Drive Method Direct drive
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Motor Protection Class IP23 (IP54 available) IP54
Power ( kW/HP) 7.5/10 11/15 15/20 22/30 30/40 37/50 45/60 55/75 75/100 90/125 110/150 132/175 160/200 185/250 220/300 250/350
Starting Mode Variable frequency starting
Dimensions Length (mm) 900 1120 1120 1340 1500 1500 1500 1800 1800 1800 2400 2400 2930 2930 3340 3340
Width (mm) 660 760 760 880 980 980 980 1250 1250 1250 1470 1470 2040 2040 2120 2120
Height (mm) 900 1020 1020 1180 1300 1300 1300 1570 1570 1570 1840 1840 2140 2140 2440 2440
N.W. kg 140 255 260 380 495 515 525 932 1013 1070 1650 1770 2750 2950 3600 4350
Outlet Diameter (inch) G3/4" G1" G1-1/2" G2" G2-1/2" DN80 DN100

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

  • Energy Efficiency

    Outperforming fixed-speed screw compressors, our VSD air compressor is more energy-efficient and cost-effective.

  • Advanced Main Unit

    The air compressor's international-grade main unit is meticulously designed for increased free air delivery, high performance, and reliable operation.

  • IE4 Permanent Magnet Motor

    A fully enclosed IE4 permanent magnet synchronous motor eliminates unloading losses, offering safety, efficiency, and energy savings with an IP54 protection rating.

  • Direct-Coupled Structure

    The direct-coupled structure between the main unit and the permanent magnet motor ensures high reliability, safety, and ease of maintenance.

  • Dedicated Inverter

    Utilizing a dedicated inverter for the permanent magnet synchronous motor enables precise speed control, constant pressure air supply, soft startup, and intelligent air supply.

  • Intelligent Control

    Our fully intelligent control system dynamically displays system conditions, monitors critical parameters in real-time, automates start-stop operations, and ensures continuous, unmanned operation.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
