Single Stage Fixed Speed Screw Compressor
Inquiry

Single Stage Fixed Speed Screw Compressor, RE Series

  • Air Displacement (m³/min): 0.84～43.9
  • Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
  • Power (kW): 7.5~250 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Single Stage Fixed Speed Screw Compressor

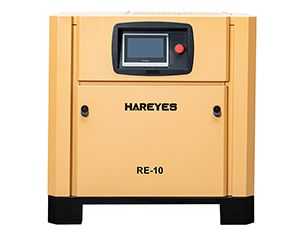

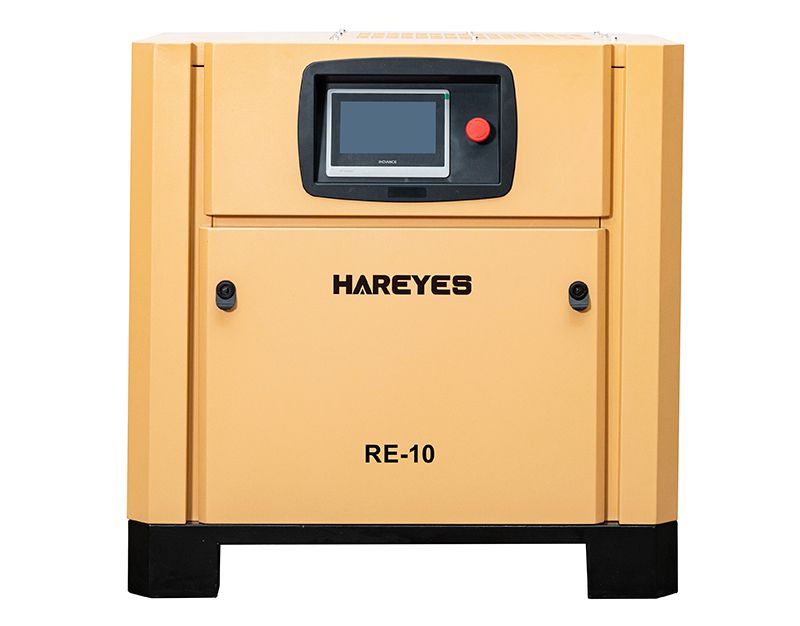

    RE-10
    Single Stage Fixed Speed Screw Compressor 7.5kW/10HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.05/0.7/7 0.96/0.8/8 0.84/1.0/10 37/102 34/116 30/145 7.5/10 900*660*900
  • Single Stage Fixed Speed Screw Compressor
    RE-15
    Single Stage Fixed Speed Screw Compressor 11kW/15HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    1.63/0.7/7 1.55/0.8/8 1.37/1.0/10 58/102 55/116 48/145 11/15 1120*760*1020
  • Single Stage Fixed Speed Screw Compressor
    RE-20
    Single Stage Fixed Speed Screw Compressor 15kW/20HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    2.28/0.7/7 2.06/0.8/8 1.87/1.0/10 81/102 73/116 66/145 15/20 1120*760*1020
  • Single Stage Fixed Speed Screw Compressor

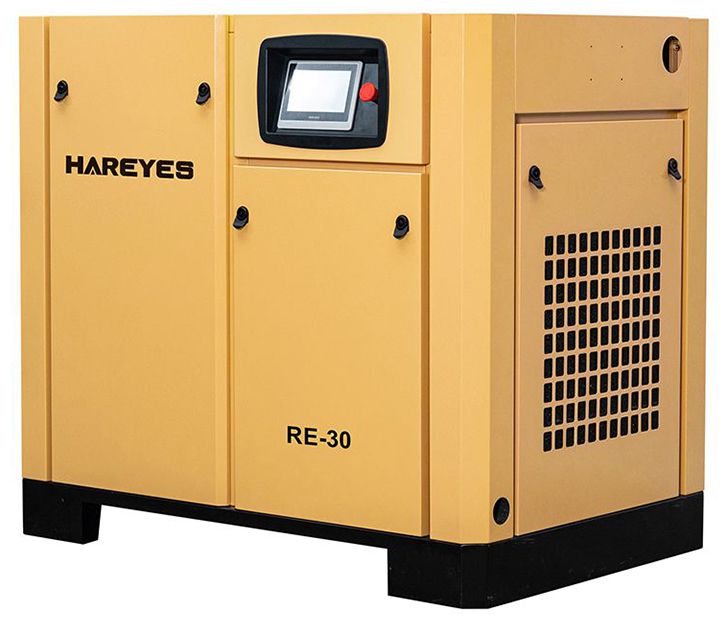

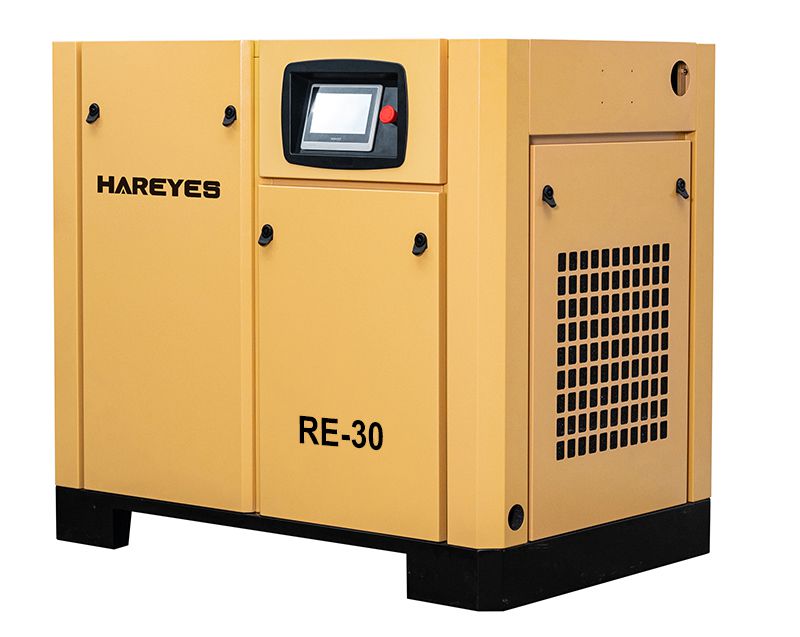

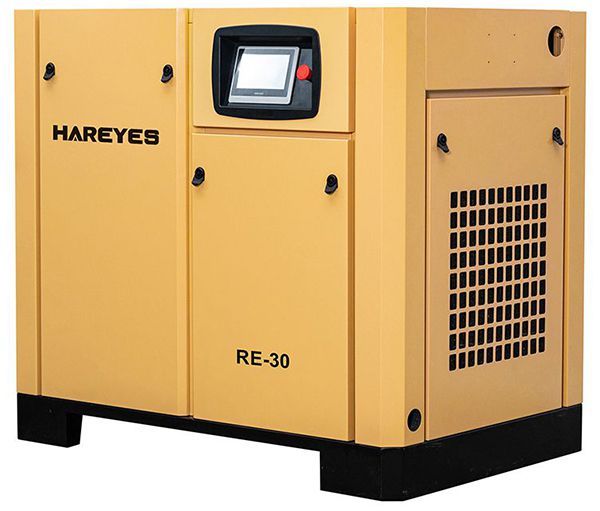

    RE-30
    Single Stage Fixed Speed Screw Compressor 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    3.6/0.7/7 3.5/0.8/8 3.2/1.0/10 127/102 124/116 113/145 22/30 1340*880*1180
  • Single Stage Fixed Speed Screw Compressor
    RE-40
    Single Stage Fixed Speed Screw Compressor 30kW/40HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    5.0/0.7/7 4.9/0.8/8 4.6/1.0/10 177/102 173/116 163/145 30/40 1500*1000*1330
  • Single Stage Fixed Speed Screw Compressor
    RE-50
    Single Stage Fixed Speed Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    6.2/0.7/7 6.0/0.8/8 5.6/1.0/10 219/102 212/116 198/145 37/50 1500*1000*1330
  • Single Stage Fixed Speed Screw Compressor
    RE-60
    Single Stage Fixed Speed Screw Compressor 45kW/60HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    7.1/0.7/7 6.9/0.8/8 6.3/1.0/10 251/102 244/116 223/145 45/60 1500*1000*1330
  • Single Stage Fixed Speed Screw Compressor

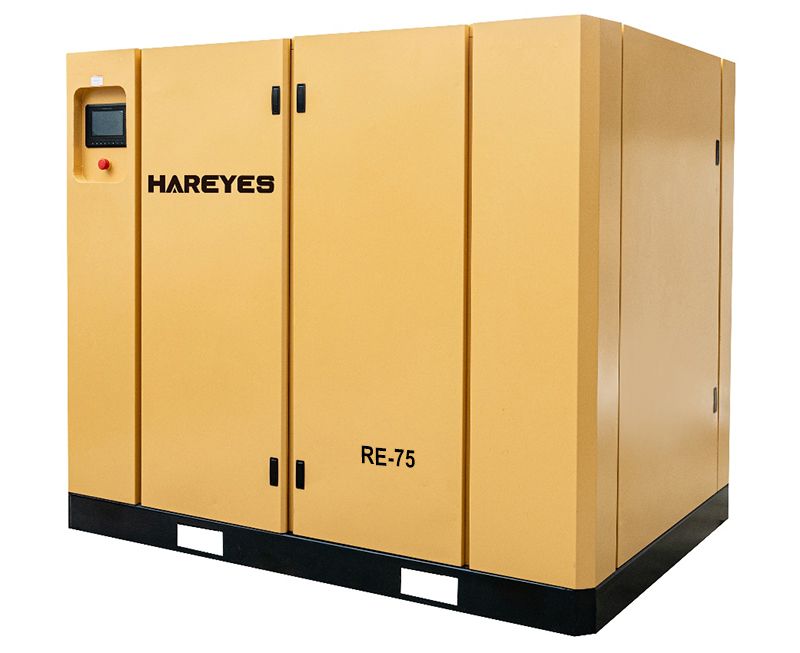

    RE-75
    Single Stage Fixed Speed Screw Compressor 55kW/75HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    9.25/0.7/7 9.1/0.8/8 8.7/1.0/10 327/102 322/116 307/145 55/75 1800*1250*1570
  • Single Stage Fixed Speed Screw Compressor
    RE-100
    Single Stage Fixed Speed Screw Compressor 75kW/100HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    12.3/0.7/7 11.9/0.8/8 11.2/1.0/10 435/102 421/116 396/145 75/100 1800*1250*1570
  • Single Stage Fixed Speed Screw Compressor
    RE-125
    Single Stage Fixed Speed Screw Compressor 90kW/125HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    15.4/0.7/7 14.9/0.8/8 14.1/1.0/10 544/102 527/116 498/145 90/125 1800*1250*1570
Model RE-10 RE-15 RE-20 RE-30 RE-40 RE-50 RE-60 RE-75 RE-100 RE-125 RE-150 RE-175 RE-200 RE-250 RE-300 RE-350

Air Displacement @ Pressure
(m³/min @ MPa/Bar) 		1.05/0.7/7 1.63/0.7/7 2.28/0.7/7 3.6/0.7/7 5.0/0.7/7 6.2/0.7/7 7.1/0.7/7 9.25/0.7/7 12.3/0.7/7 15.4/0.7/7 19.2/0.7/7 22.1/0.7/7 27.9/0.7/7 31.8/0.7/7 41.2/0.7/7 43.9/0.7/7
0.96/0.8/8 1.55/0.8/8 2.06/0.8/8 3.5/0.8/8 4.9/0.8/8 6.0/0.8/8 6.9/0.8/8 9.1/0.8/8 11.9/0.8/8 14.9/0.8/8 18.7/0.8/8 21.7/0.8/8 27.1/0.8/8 29.3/0.8/8 40.0/0.8/8 43.0/0.8/8
0.84/1.0/10 1.37/1.0/10 1.87/1.0/10 3.2/1.0/10 4.6/1.0/10 5.6/1.0/10 6.3/1.0/10 8.7/1.0/10 11.2/1.0/10 14.1/1.0/10 17.7/1.0/10 18.8/1.0/10 24.7/1.0/10 26.8/1.0/10 34.5/1.0/10 37.4/1.0/10
Air Displacement @ Pressure
(CFM @ PSI) 		37/102 58/102 81/102 127/102 177/102 219/102 251/102 327/102 435/102 544/102 678/102 781/102 986/102 1124/102 1456/102 1551/102
34/116 55/116 73/116 124/116 173/116 212/116 244/116 322/116 421/116 527/116 661/116 767/116 958/116 1035/116 1413/116 1519/116
30/145 48/145 66/145 113/145 163/145 198/145 223/145 307/145 396/145 498/145 625/145 664/145 873/145 947/145 1219/145 1327/145
Compression Stage Single stage

Volume of Lubricant (L) 		8 10 10 12 22 22 22 54 54 72 72 90 90 125 180 180
Noise Level dB(A) 68±2 70±2 75±2 78±2 80±2
Drive Method Direct drive
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)

Motor Power ( kW/HP) 		7.5/10 11/15 15/20 22/30 30/40 37/50 45/60 55/75 75/100 90/125 110/150 132/175 160/200 185/250 220/300 250/350

Starting Mode 		Star-Delta starter (star Y / delta Δ)
Dimensions Length (mm) 900 1120 1120 1340 1500 1500 1500 1800 1800 1800 2400 2400 2930 2930 3340 3340
Width (mm) 660 760 760 880 1000 1000 1000 1250 1250 1250 1470 1470 2040 2040 2120 2120
Height (mm) 900 1020 1020 1180 1330 1330 1330 1570 1570 1570 1840 1840 2140 2140 2440 2440
N.W. kg 140 255 260 380 440 490 535 960 1095 1070 1650 1770 3150 3350 4300 4850
Outlet Diameter
(inch/mm) 		G3/4" G1" G1-1/2" G2" G2-1/2" DN80 DN100

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

  • Stability

    Our screw air compressor features stability, high efficiency, minimal oscillation, and low noise levels.

  • High Performance

    Equipped with a high-performance airend, our screw air compressor ensures exceptional reliability and efficiency.

  • Lubrication

    The injected lubricating oil offers sealing, cooling, noise reduction, and lubrication functions.

  • Low Maintenance

    Compared to piston air compressors, our screw air compressor has fewer wear parts and a lower failure rate.

  • Robust Cooling System

    Our compressors feature a plate fin structure and high-quality materials, ensuring high pressure durability, cooling efficiency, and corrosion resistance.

  • Intelligent Control

    Monitor all compressor operations and related data on our control panel, designed for simple, convenient, and precise control.

  • Cooling Options

    You can choose between water-cooled and air-cooled systems.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
