Horizontal Two Stage Permanent Magnet VSD Screw Compressor, R Series

  • Air Displacement (m³/min): 3.5～26.3
  • Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
  • Power (kW): 22~132 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor

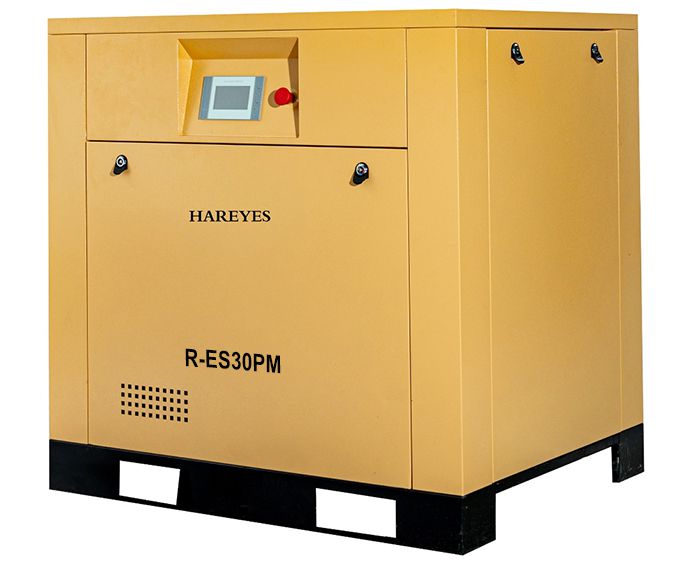

    R-ES30PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    4.3/0.7/7.0 4.16/0.8/8.0 3.5/1.0/10 152/102 147/116 124/145 22/30 1400*950*1240
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor
    R-ES50PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    7.1/0.7/7.0 6.95/0.8/8.0 6.6/1.0/10 251/102 246/116 233/145 37/50 1740*1150*1600
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor

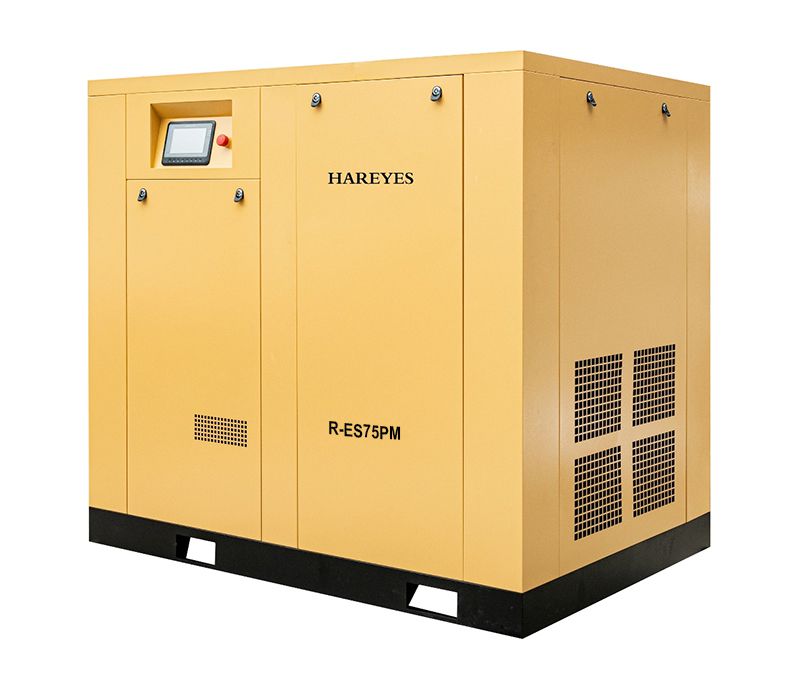

    R-ES75PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    12.4/0.7/7.0 11.3/0.8/8.0 9.8/1.0/10 438/102 399/116 346/145 55/75 1800*1400*1740
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor
    R-ES100PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    15.5/0.7/7.0 14.4/0.8/8.0 12.5/1.0/10 548/102 509/116 442/145 75/100 1800*1400*1740
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor
    R-ES125PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    18.3/0.7/7.0 17.6/0.8/8.0 16.2/1.0/10 647/102 622/116 572/145 90/125 2540*1470*1840
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor
    R-ES150PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 110kW/150HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    22.5/0.7/7.0 21.6/0.8/8.0 19.8/1.0/10 795/102 763/116 699/145 110/150 2540*1470*1840
  • Horizontal Two Stage Permanent Magnet VSD Screw Compressor

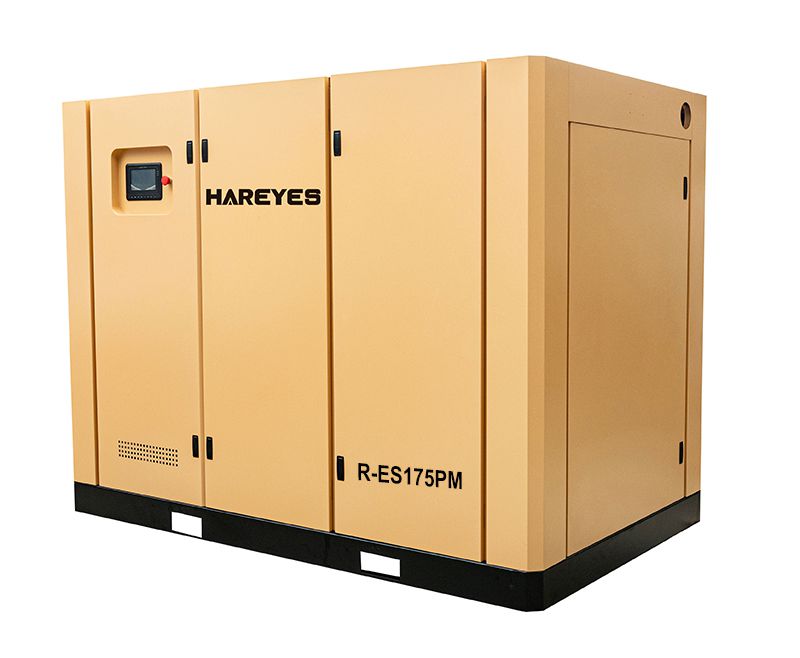

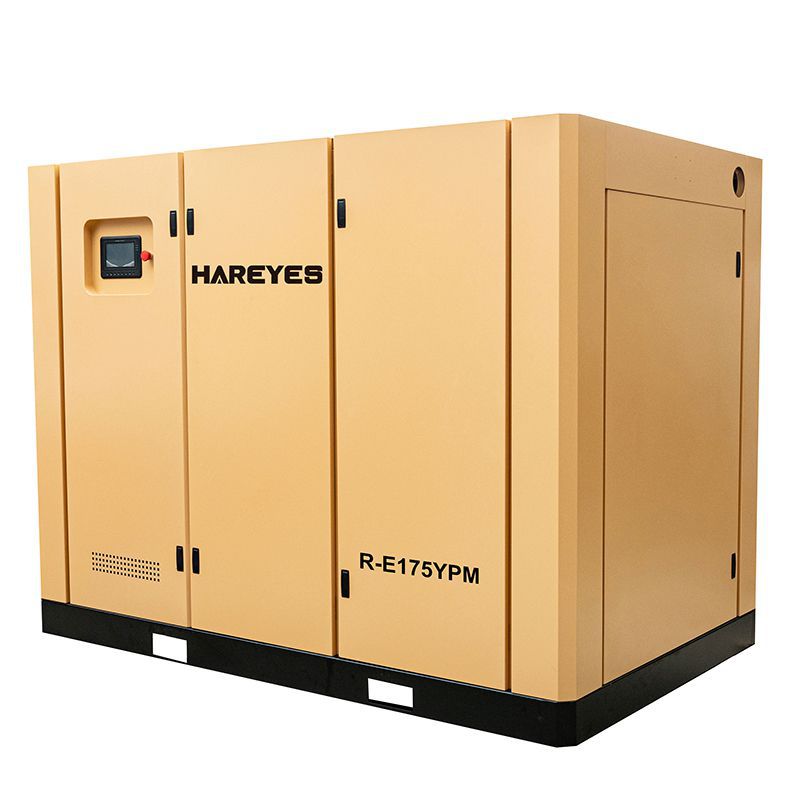

    R-ES175PM
    Horizontal Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    26.3/0.7/7.0 25.4/0.8/8.0 22.7/1.0/10 929/102 898/116 802/145 132/175 2540*1470*1840
Model R-ES30PM R-ES50PM R-ES75PM R-ES100PM R-ES125PM R-ES150PM R-ES175PM
Air Displacement @ Pressure
(M³/min @ MPa/Bar) 		4.3/0.7/7.0 7.1/0.7/7.0 12.4/0.7/7.0 15.5/0.7/7.0 18.3/0.7/7.0 22.5/0.7/7.0 26.3/0.7/7.0
4.16/0.8/8.0 6.95/0.8/8.0 11.3/0.8/8.0 14.4/0.8/8.0 17.6/0.8/8.0 21.6/0.8/8.0 25.4/0.8/8.0
3.5/1.0/10 6.6/1.0/10 9.8/1.0/10 12.5/1.0/10 16.2/1.0/10 19.8/1.0/10 22.7/1.0/10
Air Displacement @ Pressure
(CFM @ PSI) 		152/102 251/102 438/102 548/102 647/102 795/102 929/102
147/116 246/116 399/116 509/116 622/116 763/116 898/116
124/145 233/145 346/145 442/145 572/145 699/145 802/145
Cooling Method Air cooling (water cooling available)
Discharge Temperature (℃) ≤40
Volume of Lubricant (L) 18 32 54 72 90
Compression Stage Two-stage
Noise Level dB(A） 70±2 75±2 78±2
Drive Method Direct drive
Power
( kW/HP) 		22/30 37/50 55/75 75/100 90/125 110/150 132/175
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Motor Protection Class IP23
Starting Mode Variable frequency starting
Dimensions Length (mm) 1400 1740 1800 1800 2540 2540 2540
Width (mm) 950 1150 1400 1400 1470 1470 1470
Height (mm) 1240 1600 1740 1740 1840 1840 1840
N.W. kg 430 760 1040 1156 1455 1750 1860
Outlet Diameter (inch) G1-1/2" G2" G2-1/2"

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

  • Direct Drive System

    The compressor's main unit and motor employ direct drive, enhancing transmission efficiency, reducing mechanical losses, and eliminating air supply interruptions due to transmission failures.

  • Efficient Cooling System

    Utilizing an efficient cooling system, this compressor boosts cooling efficiency, ensuring ample cooling airflow and extending operational lifespan.

  • Permanent Magnet Synchronous Motor

    Equipped with a permanent magnet synchronous motor and phase sequence protection, our compressor prevents motor reversal, ensuring high-efficiency compressor operation.

  • Intelligent Control

    Our compressor features a fully intelligent control system with dynamic system status display and real-time monitoring of critical parameters.

Horizontal two-stage screw main unit with an optimized internal structure. It delivers a 15% increase in air volume compared to single-stage compressors of the same power.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
