Oil Lubricated Piston Air Compressor
Inquiry

Oil Lubricated Piston Air Compressor

  • Air Displacement (L/min): 118～412
  • Maximum Pressure (Bar/PSI): 8Bar / 115PSI
  • Power(W): 900~2200 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

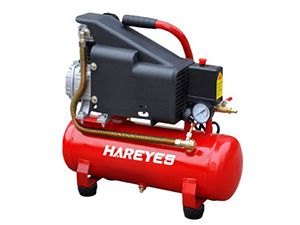

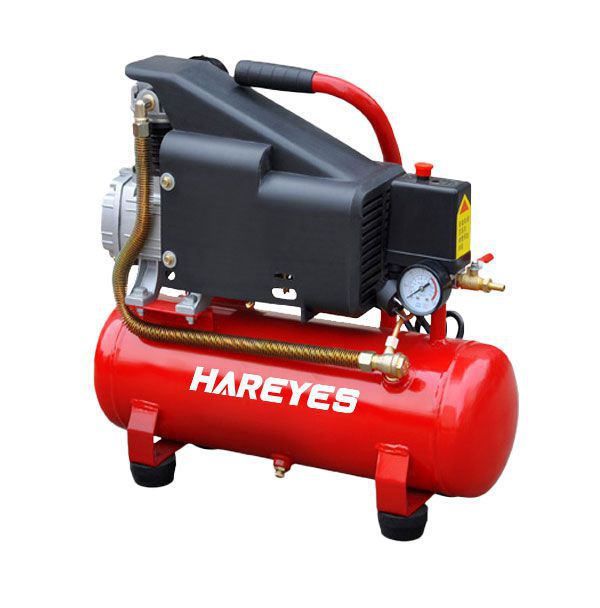

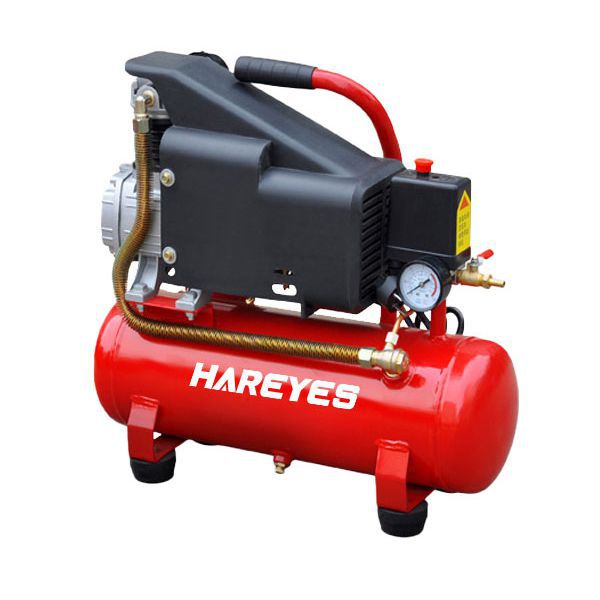

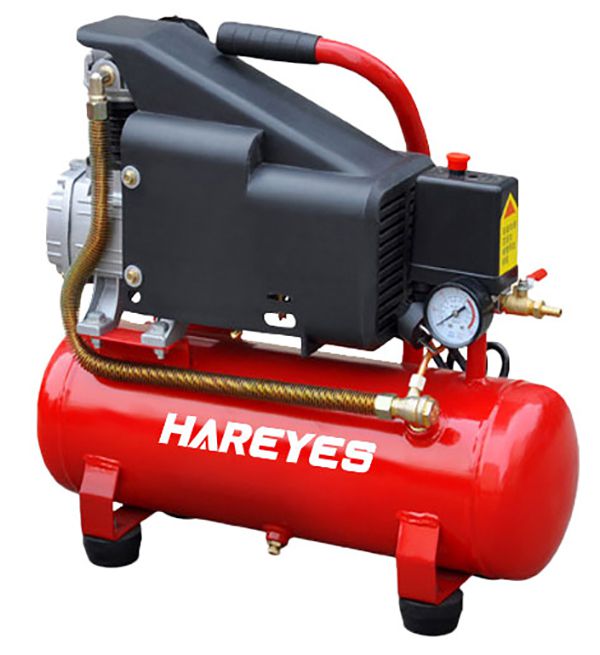

  • Oil Lubricated Piston Air Compressor
    HR-1008
    Oil Lubricated Piston Air Compressor 900W/1.25HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    900/1.25 8Bar/115PSI 50 118 4.16 2850 51*22*50
    60 141 4.99 3400

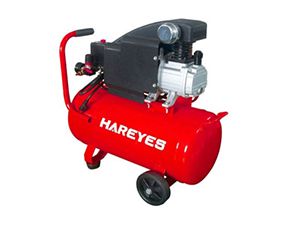

  • Oil Lubricated Piston Air Compressor
    HR-1524KC
    Oil Lubricated Piston Air Compressor 1100W/1.50HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1100/1.50 8Bar/115PSI 50 155 5.46 2850 58*25*58
    60 185 6.5 3400

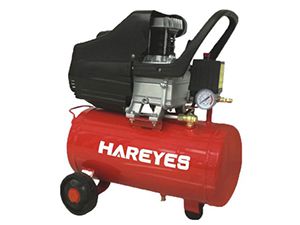

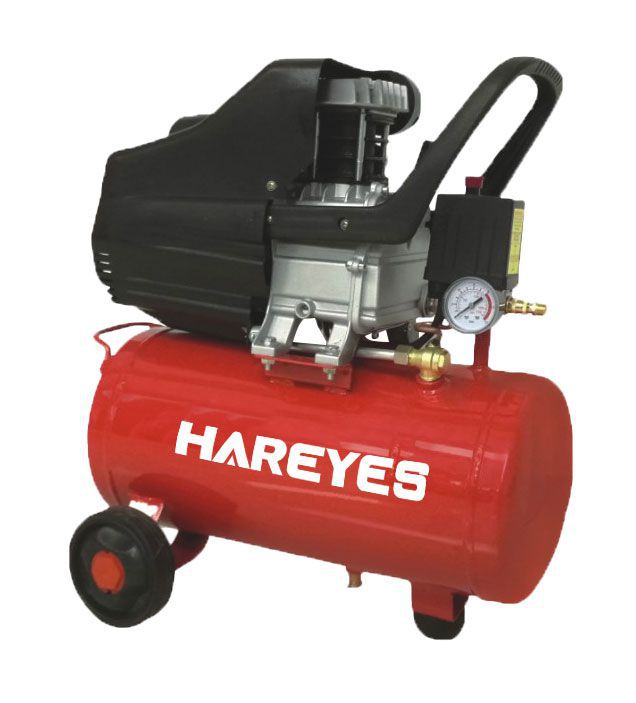

  • Oil Lubricated Piston Air Compressor
    HR-1524B
    Oil Lubricated Piston Air Compressor 1100W/1.50HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1100/1.50 8Bar/115PSI 50 138 4.88 2850 58*25*58
    60 165 5.82 3400

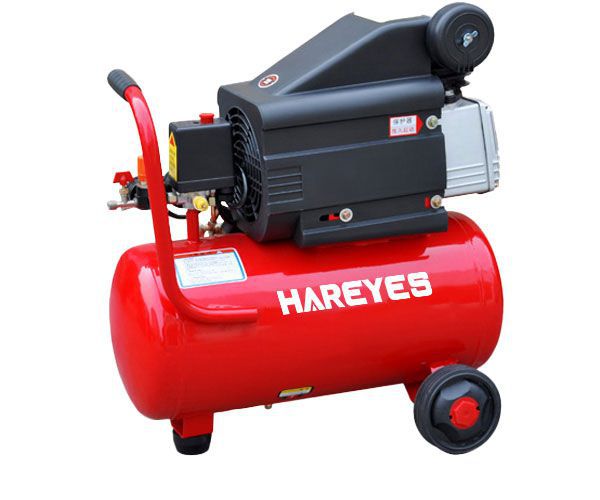

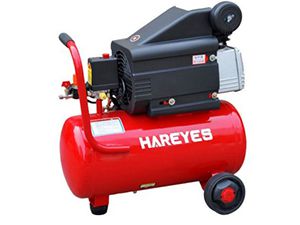

  • Oil Lubricated Piston Air Compressor
    HR-2024B
    Oil Lubricated Piston Air Compressor 1500W/2HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1500/2 8Bar/115PSI 50 206 7.28 2850 58*25*58
    60 246 8.7 3400

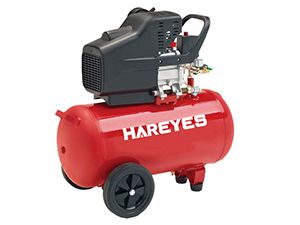

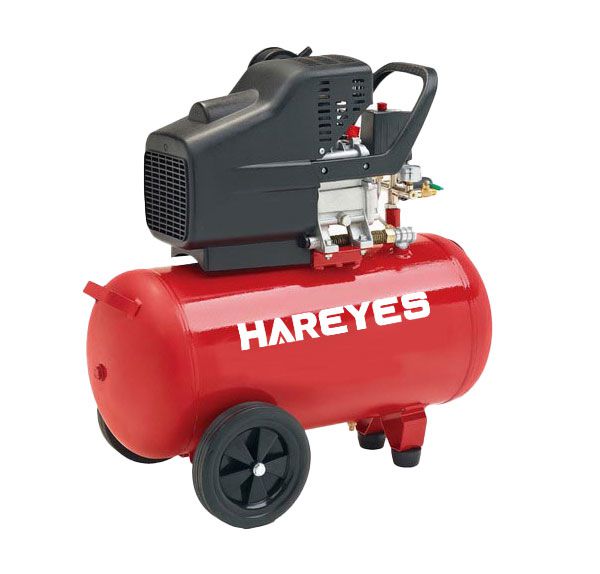

  • Oil Lubricated Piston Air Compressor
    HR-2524B
    Oil Lubricated Piston Air Compressor 1800W/2.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1800/2.5 8Bar/115PSI 50 270 9.53 2850 58*25*58
    60 323 11.4 3400
  • Oil Lubricated Piston Air Compressor
    HR-1550B
    Oil Lubricated Piston Air Compressor 1100W/1.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1100/1.5 8Bar/115PSI 50 138 4.88 2850 72*33*68
    60 165 5.82 3400

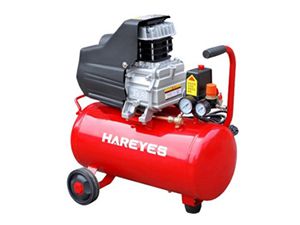

  • Oil Lubricated Piston Air Compressor
    HR-2050B
    Oil Lubricated Piston Air Compressor 1500W/2HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1500/2 8Bar/115PSI 50 206 7.28 2850 72*33*68
    60 246 8.7 3400

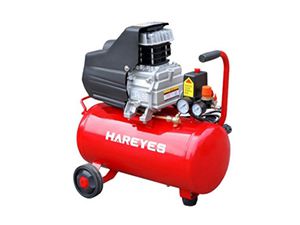

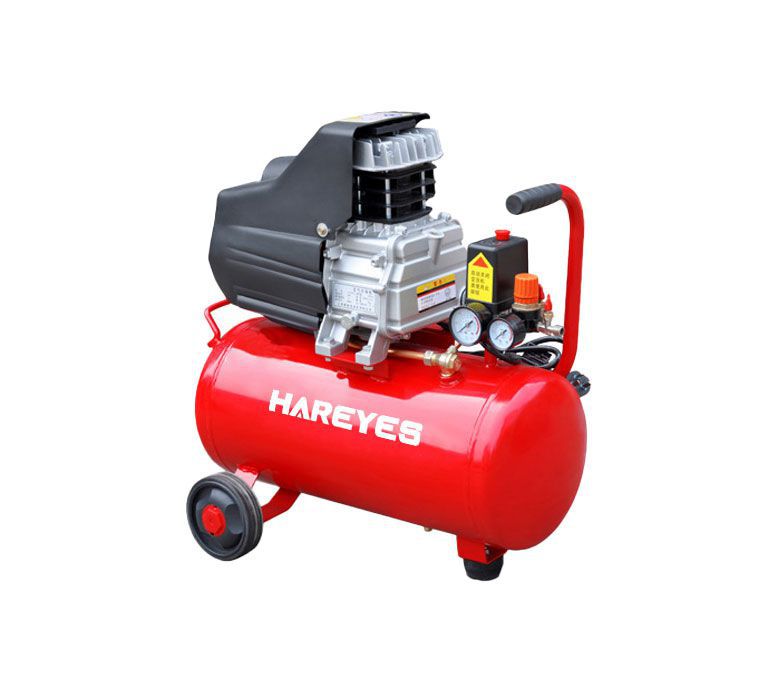

  • Oil Lubricated Piston Air Compressor
    HR-2550B
    Oil Lubricated Piston Air Compressor 1800W/2.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1800/2.5 8Bar/115PSI 50 270 9.53 2850 72*33*68
    60 323 11.4 3400
  • Oil Lubricated Piston Air Compressor
    HR-1524F
    Oil Lubricated Piston Air Compressor 1100W/1.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1100/1.5 8Bar/115PSI 50 138 4.88 2850 58*25*58
    60 165 5.82 3400

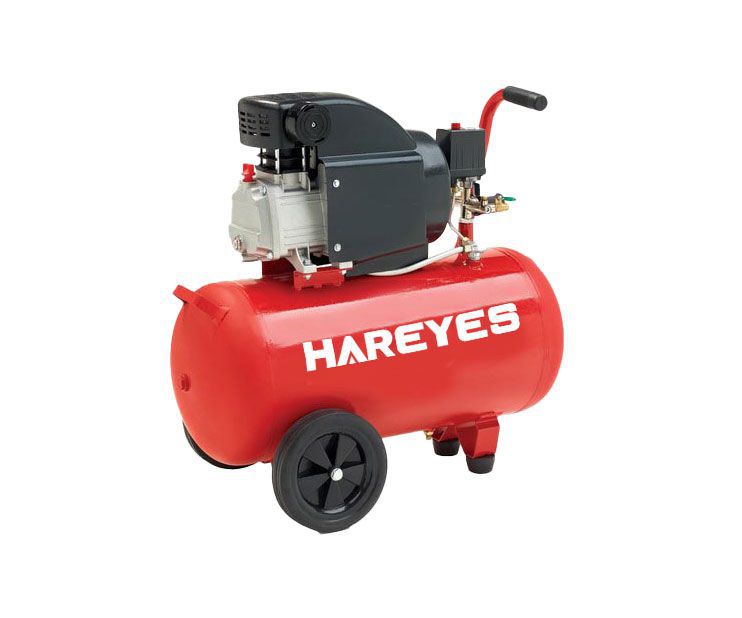

  • Oil Lubricated Piston Air Compressor
    HR-2024F
    Oil Lubricated Piston Air Compressor 1500W/2HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Frequency (Hz) Air Displacement Speed (R.P.M) Package Size (cm)
    L / Min CFM
    1500/2 8Bar/115PSI 50 206 7.28 2850 58*25*58
    60 246 8.7 3400
Model Power Tank Volume Maximum Pressure Frequency Air Displacement speed N.W./G.W Meas
Litre Litre / Min CFM (R.P.M) KGS (cm)
HR-1008 900W / 1.25HP 8 L 8Bar / 115PSI 50 HZ 118 4.16 2850 15 / 16 51*22*50
60 HZ 141 4.99 3400
HR-1524KC 1100W / 1.50HP 24L 50 HZ 155 5.46 2850 20 / 22 58*25*58
60 HZ 185 6.5 3400
HR-1524B 1100W / 1.50HP 24L 8Bar/115PSI 50Hz 138 4.88 2850 19/21 58*25*58
60Hz 165 5.82 3400
HR -2024B 1500W / 2HP 50Hz 206 7.28 2850 20/22
60Hz 246 8.7 3400
HR -2524B 1800W / 2.5HP 50Hz 270 9.53 2850 22/24
60Hz 323 11.4 3400
HR -1550B 1100W / 1.5HP 50L 8Bar/115PSI 50Hz 138 4.88 2850 26.5/28.5 72*33*68
60Hz 165 5.82 3400
HR -2050B 1500W / 2HP 50Hz 206 7.28 2850 28/30
60Hz 246 8.7 3400
HR -2550B 1800W / 2.5HP 50Hz 270 9.53 2850 32/34
60Hz 323 11.4 3400
HR -1524F 1100W / 1.5HP 24L 8Bar / 115PSI 50 HZ 138 4.88 2850 19 / 21 58*25*58
60 HZ 165 5.82 3400
HR -2024F 1500W / 2HP 50 HZ 206 7.28 2850 20 / 22
60 HZ 246 8.7 3400
HR -2524F 1800W / 2.5HP 50 HZ 270 9.53 2850 22 / 124
60 HZ 323 11.4 3400
HR -1550F 1100W / 1.5HP 50L 8Bar / 115PSI 50 HZ 138 4.88 2850 26.5/28.5 72*33*68
60 HZ 165 5.82 3400
HR -2050F 1500W / 2HP 50 HZ 206 7.28 2850 28/30
60 HZ 246 8.7 3400
HR -2550F 1800W / 2.5HIP 50 HZ 270 9.53 2850 32/34
60 HZ 323 11.4 3400
HR -2016B 1500W / 2HP 16L 8Bar / 115PSI 50 HZ 206 7.28 2850 15/16 51*22*50
60 HZ 246 8.7 3400
HR -2516B 1800W / 2.5HP 50 HZ 270 9.53 2850
60HZ 323 11.4 3400
HR -2050FV 1500W / 2HP 50L 8Bar / 115PSI 50 HZ 206 7.28 2850 20/22 58*25*58
60 HZ 246 8.7 3400
HR -2550FV 1800W / 2.5HP
50 HZ 270 9.53 2850
60 Hz 323 1.4 340o
HR -2024Q 1500W / 2HP 24L 8Bar/115PSI 50 Hz 206 7.28 2850 20/22 58*25*58
60Hz 246 8.7 3400
HR -2050MK 1500W / 2HP 50L 50Hz 206 7.28 2850 28/30 72*33*68
60Hz 246 8.7 3400
HR -3050 2200W / 3HP 50 L 8Bar /115PSI 50 Hz 412 14.55 2850 40/43 72*36*70

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
