Oil Free Silenced Air Compressor, Standard Type
Inquiry

Oil Free Silenced Air Compressor, Standard Type

  • Air Displacement (L/min): 102～1120
  • Maximum Pressure (Bar/PSI): 8Bar/115PSI
  • Power (W): 550~1500*4 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Oil Free Silenced Air Compressor, Standard Type

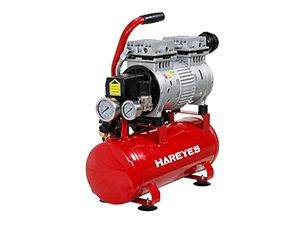

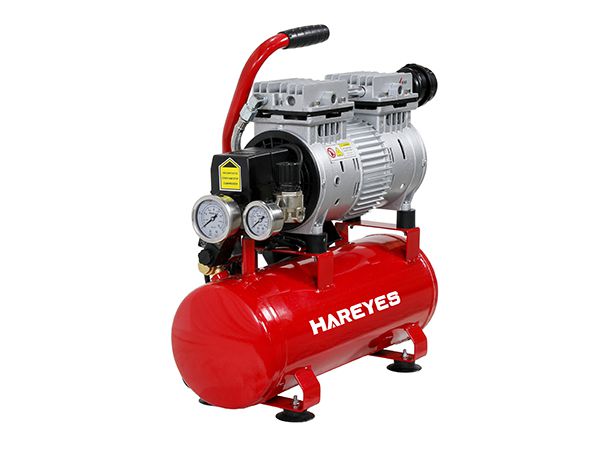

    HRS550-8L
    Oil Free Silenced Air Compressor, Standard Type 550W/0.75HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    550/0.75 8Bar/115PSI L / Min CFM 1380 46*17*48 51*21*51
    102 3.60
  • Oil Free Silenced Air Compressor, Standard Type

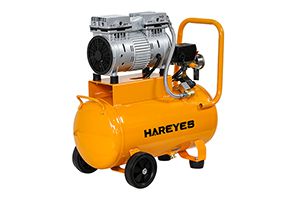

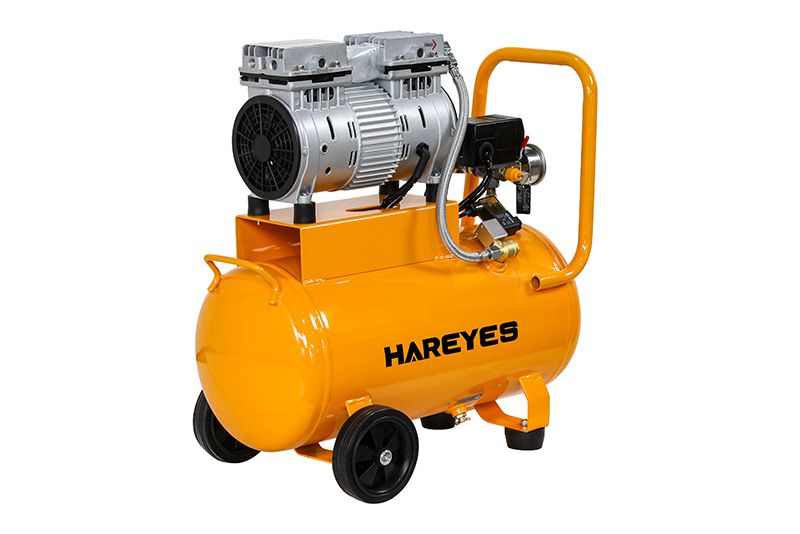

    HRS550-24L
    Oil Free Silenced Air Compressor, Standard Type 550W/0.75HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    550/0.75 8Bar/115PSI L / Min CFM 1380 55*30*55 59*27.5*54
    102 3.60
  • Oil Free Silenced Air Compressor, Standard Type

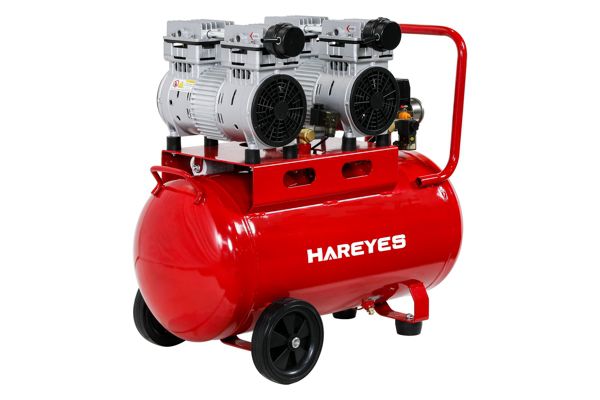

    HRS550-2-50L
    Oil Free Silenced Air Compressor, Standard Type 2*550W/1.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    2*550 /1.5 8Bar/115PSI L / Min CFM 1380 70*37*60 72*33*58.5
    204 7.20
  • Oil Free Silenced Air Compressor, Standard Type

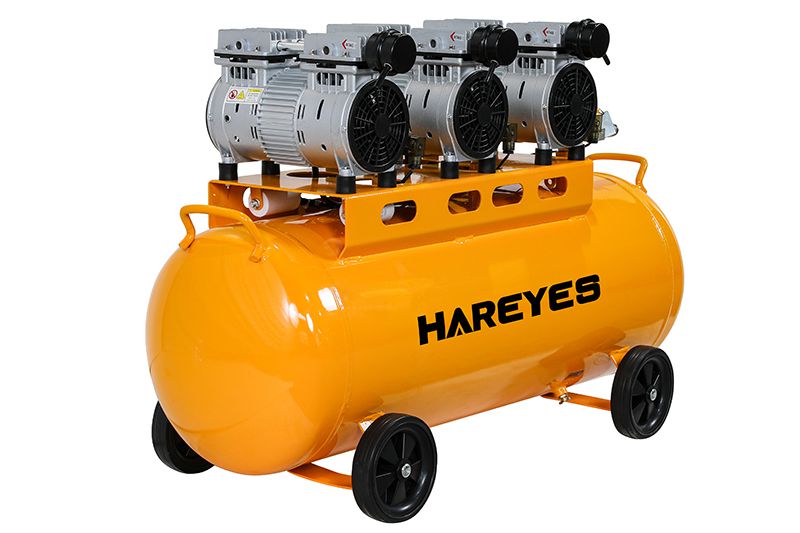

    HRS550-3-90L
    Oil Free Silenced Air Compressor, Standard Type 3*550kW//2.2HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    3*550/2.2 8Bar/115PSI L / Min CFM 1380 104*41*68 106*40*64
    306 10.81
  • Oil Free Silenced Air Compressor, Standard Type

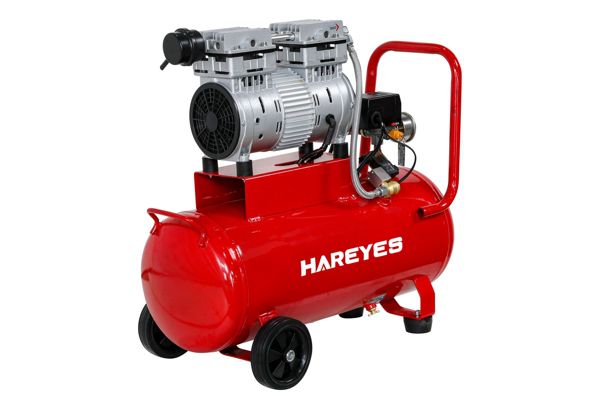

    HRS750-30L
    Oil Free Silenced Air Compressor, Standard Type 750W/1HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    750/1 8Bar/115PSI L / Min CFM 1380 64*31*58 67*28*59
    124 4.38
  • Oil Free Silenced Air Compressor, Standard Type

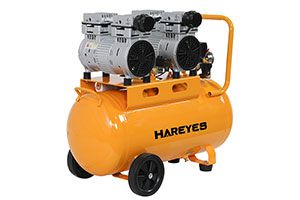

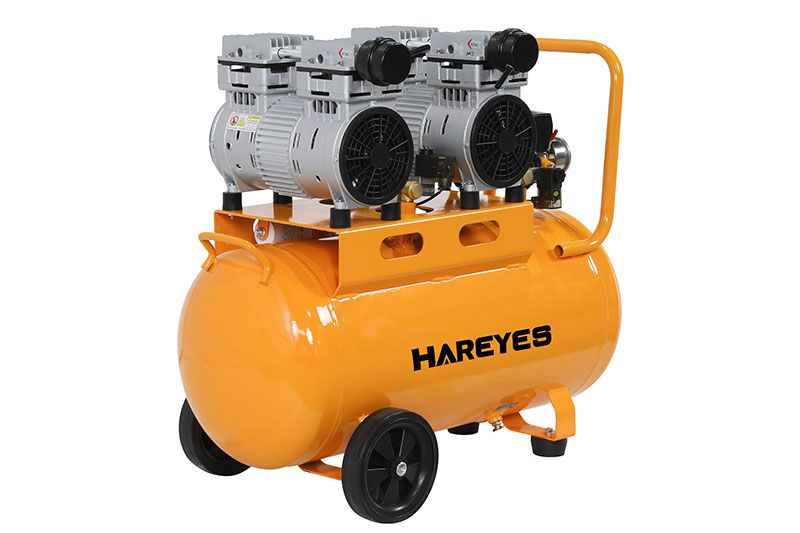

    HRS750-2-50L
    Oil Free Silenced Air Compressor, Standard Type 2*750W/2HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    2*750/2 8Bar/115PSI L / Min CFM 1380 68*37*58 72*33*60
    248 8.76
  • Oil Free Silenced Air Compressor, Standard Type

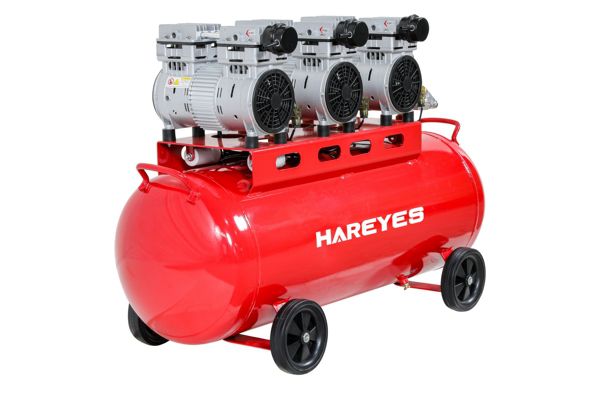

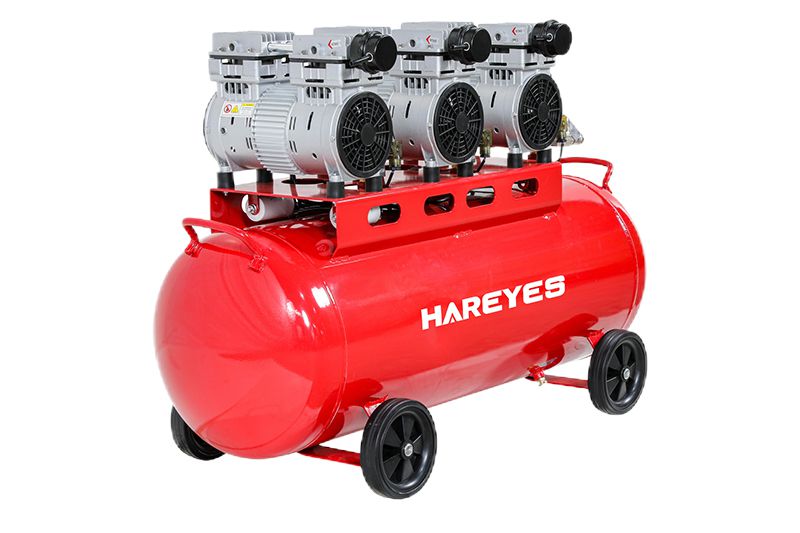

    HRS750-3-90L
    Oil Free Silenced Air Compressor, Standard Type 3*750W/3HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    3*750/3 8Bar/115PSI L / Min CFM 1380 104*41*68 106.5*39.5*67
    372 13.14
  • Oil Free Silenced Air Compressor, Standard Type

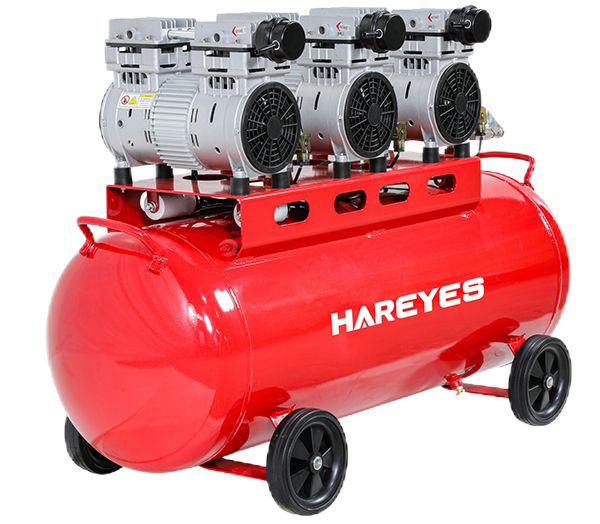

    HRS750-4-120L
    Oil Free Silenced Air Compressor, Standard Type 4*750W/4HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    4*750/4 8Bar/115PSI L / Min CFM 1380 121*43*67 126*39.5*66
    496 17.51
  • Oil Free Silenced Air Compressor, Standard Type

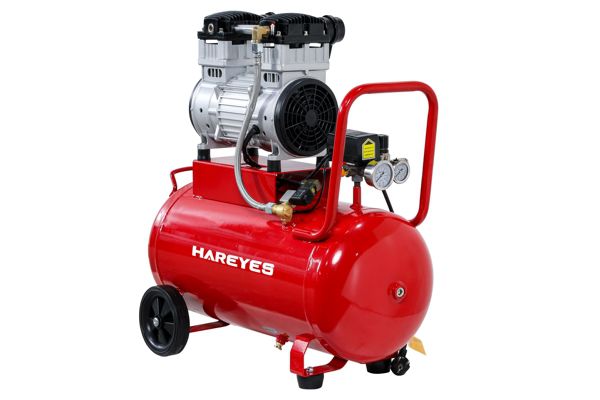

    HRS1100-50L
    Oil Free Silenced Air Compressor, Standard Type 1100W/1.5HP
    Power (W/HP) Maximum Pressure (Bar/PSI) Air Displacement Speed (R.P.M) Overall Dimensions (cm) Package Size (cm)
    1100/1.5 8Bar/115PSI L / Min CFM 1380 67*38*70 72*33*69
    200 7.06
Model Power Air Tank Capacity (Litre / Gal) Maximum Pressure Voltage /Frequency Air Displacement speed N.W. KGS Overall dimensions (cm) Package Size (cm)
Litre / Min CFM (R.P.M)
HRS550-8L 550W / 0.75HP 8/2.11 8Bar/115PSI 220V/50 HZ 102 3.60 1380 15.6 46*17*48 51*21*51
HRS550-24L 550W / 0.75HP 24/6.34 8Bar/115PSI 220V/50 HZ 102 3.60 1380 21 55*30*55 59*27.5*54
HRS550-2-50L 2*550w / 1.5HP 50/13.20 8Bar/115PSI 220V/50 HZ 204 7.20 1380 37.5 70*37*60 72*33*58.5
HRS550-3-90L 3*550W /2.2HP 90/23.76 8Bar/115PSI 220V/50 HZ 306 10.81 1380 52 104*41*68 106*40*64
HRS750-30L 750W / 1 HP 30/7.92 8Bar/115PSI 220V/50 HZ 124 4.38 1380 23.2 64*31*58 67*28*59
HRS750-2-50L 2*750W / 2HP 50/13.20 8Bar/115PSI 220V/50 HZ 248 8.76 1380 40 68*37*58 72*33*60
HRS750-3-90L 3*750W / 3HP 90/23.76 8Bar/115PSI 220V/50 HZ 372 13.14 1380 67.2 104*41*68 106.5*39.5*67
HRS750-4-120L 4*750W / 4 HP 120/31.68 8Bar/115PSI 220V/50 HZ 496 17.51 1380 84.5 121*43*67 126*39.5*66
HRS1100-50L 1100W / 1.5HP 50/13.20 8Bar/115PSI 220V/50 HZ 200 7.06 1380 33 67*38*70 72*33*69
HRS1100-2-100L 1100W*2 / 3HP 100/26.40 8Bar/115PSI 220V/50 HZ 400 14.12 1380 70 100*36*80 109*39.5*77
HRS1100-3-120L 1100W*3 / 4.48HP 120/31.68 8Bar/115PSI 220V/50 HZ 600 21.19 1380 94 122*42*74 124*37.5*73.5
HRS1100-4-180L 1100W*4 / 6HP 180/47.52 8Bar/115PSI 220V/50 HZ 800 28.25 1380 132 142*39*87 148*42.5*83
HRS1500-50L 1500W /2HP 50/13.20 8Bar/115PSI 220V/50 HZ 280 9.89 1380 34.2 68*37*71 72*33*69
HRS1500-2-100L 1500W*2 /4HP 100/26.40 8Bar/115PSI 220V/50 HZ 560 19.77 1380 72 106*35*80 109*39*75
HRS1500-3-120L 1500W*3 /6HP 120/31.68 8Bar/115PSI 220V/50 HZ 840 29.66 1380 96 123*42*74 124*37.5*74.5
HRS1500-4-180L 1500W*4 /8HP 180/47.52 8Bar/115PSI 220V/50 HZ 1120 39.55 1380 135 142*39*87 148*42.5*84

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
Related Air Treatment Equipment
Oil Free Silenced Air Compressor (Roll-Cage Construction) Oil Free Silenced Air Compressor (Roll-Cage Construction)

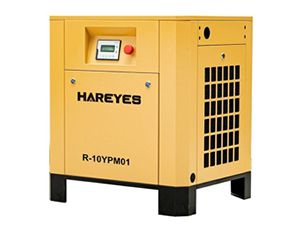

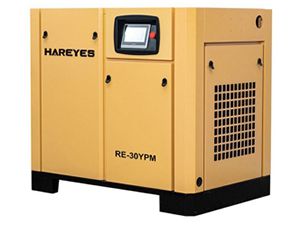

Variable Speed, Single Stage Variable Speed, Single Stage
Variable Speed, Two Stage (Horizontal) Variable Speed, Two Stage (Horizontal)

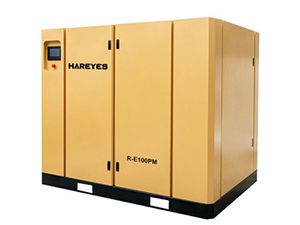

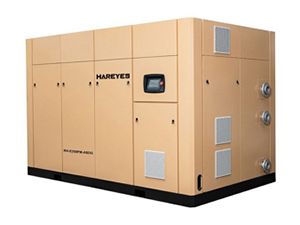

Variable Speed, Two Stage (Vertical, R Series) Variable Speed, Two Stage (Vertical, R Series)
